AVAILABLE TO ORDER WITH GIFT

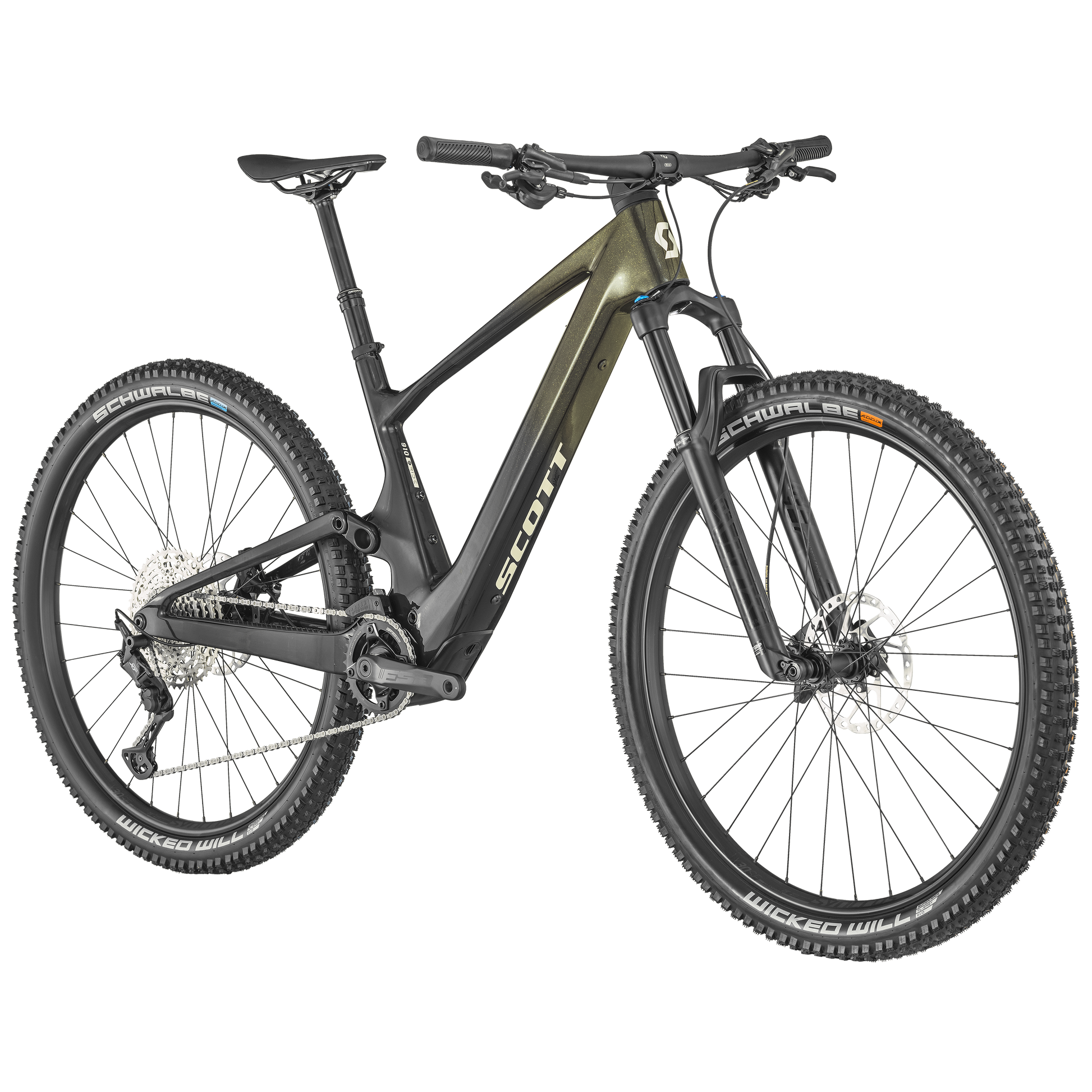

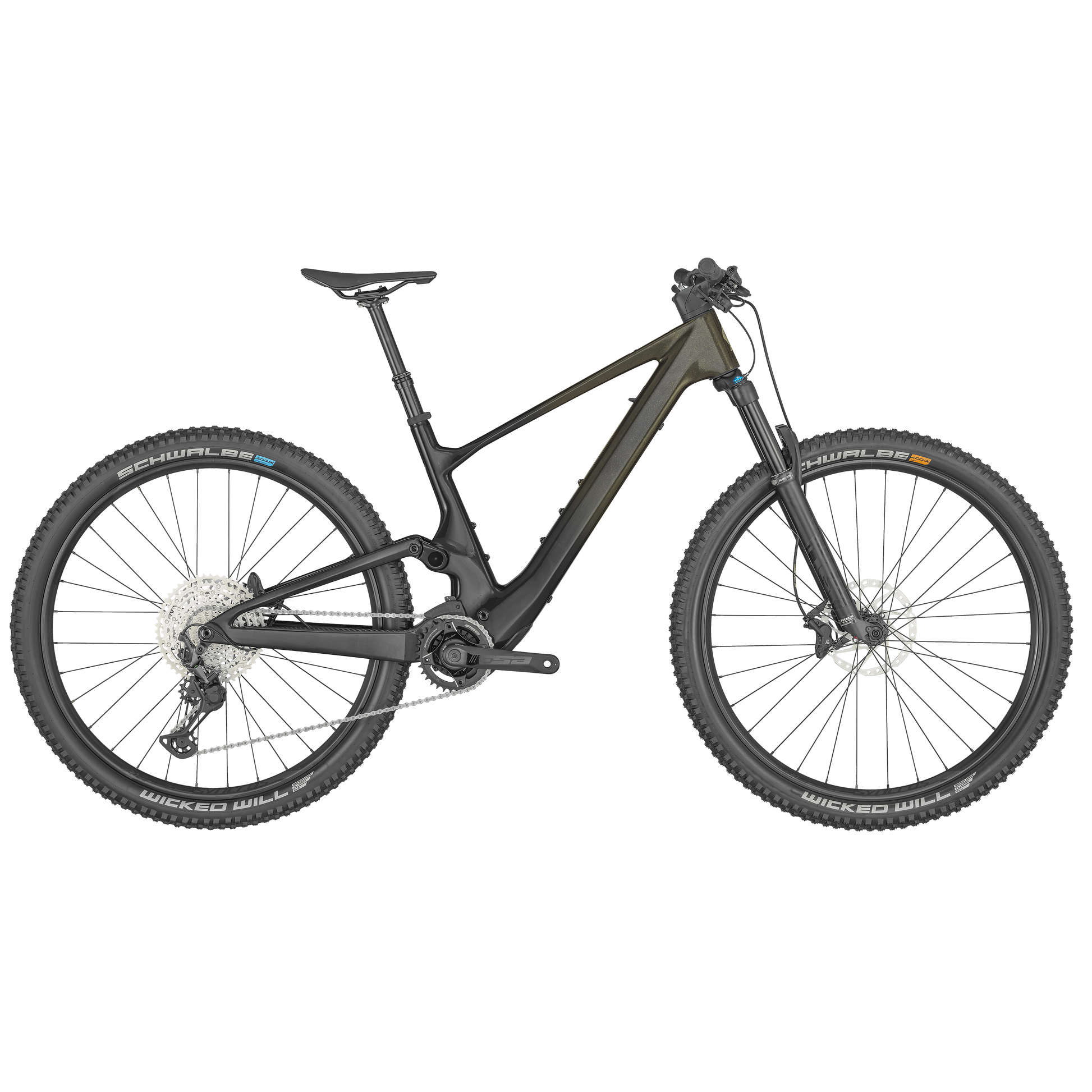

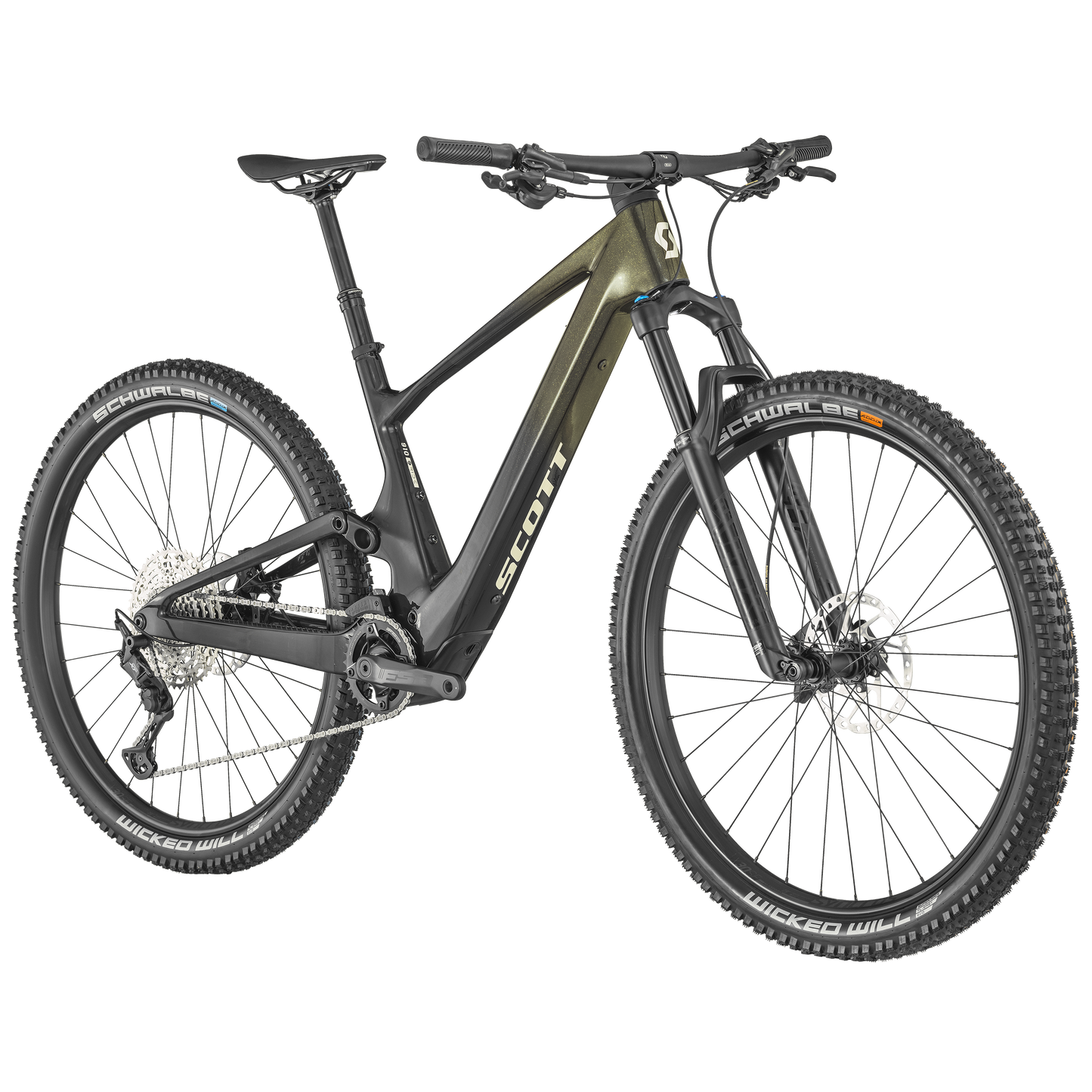

SCOTT LUMEN ERIDE 910 BIKE
Model : 290602
An E-MTB with the weight of an MTB, starting at 15.5kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Nino’s speed.
FrameLumen eRIDE Carbon HMXIntegrated Suspension TechnologyFlex Pivot / Adjustable head angleSyncros Cable Integration SystemTQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
TravelFront: 130mm / Rear: 130mm
ForkFOX 34 Float Rhythm Air Grip3-Modes / Kabolt 15x110mm axle / tapered steerer44mm offset / Reb. Adj. / Lockout / 130mm travel
Rear ShockFOX NUDE 5T EVOL TrunnionSCOTT custom w. travel / geo adj.3 modes: Lockout-Traction Control-DescendCustom large Air volume / DPS / Reb. Adj.Travel 130-90-Lockout / T165X45mm
Remote SystemSCOTT TwinLoc Suspension System3 modes front and rear / integ. Grip clamp
Drive UnitTQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
BatteryTQ Internal 360Wh
DisplayTQ HPRBluetooth / ANT+ / Dedicated Smartphone app
ChargerTQ 100-240V-4A
Rear DerailleurShimano XT RD-M8100 SGSShadow Plus / 12 Speed
ShiftersShimano Deore SL-M6100-IR / Rapidfire PlusIspec EV clamp
CranksetFSA Alloy crankset / 175mm / 34T
Chainguidee*thirteen / e*spec Slider
ChainringScott custom spider / FSA 12Speed 34T chainring
ChainShimano CN-M6100
CassetteShimano CS-M6100 / 10-51 T
BrakesShimano Deore M6120 4 Piston Disc
RotorFront: SM-RT64 CL 180mm / Rear: RT-EM600 CL 180mm
HandlebarSyncros Fraser 2.0 DC Alloy 6061 D.B.mini Rise / back sweep 8° / 760mmSyncros Performance XC lock-on grips
H'stemSyncros DC 2.0Syncros Cable Integration System0° rise / 6061 Alloy / 31.8mm / 1 1/8"
SeatpostSyncros Duncan Dropper Post 2.031.6mm / S & M size 125mm / L size 150mm / XL size 170mm
SeatSyncros Tofino 1.5 Regular, Titanium rails
HeadsetSyncros - Acros Angle adjust & Cable Routing HS System+-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
Hub (Front)Formula CL-811 / 15x110mm
Hub (Rear)Formula CL-148M / 12x148mm / Micro SplineSyncros Axle w/Removable Leverwith 6mm Allen, T30 and T25 Tools
SpokesStainless Black 15G / 1.8mm
RimsSyncros X-30SE / 32H / 30mmTubeless ready
Front TireSchwalbe Wicked Will 29x2.4" EVOSuper Race / TLE / 67EPI / Addix Speed Soft
Rear TireSchwalbe Wicked Will 29x2.4" EVOSuper Race / TLE / 67EPI / Addix Speed Grip
Approx weights in KG17.6 (Tubeless setup)
Approx weights in LBS38.8 (Tubeless setup)
