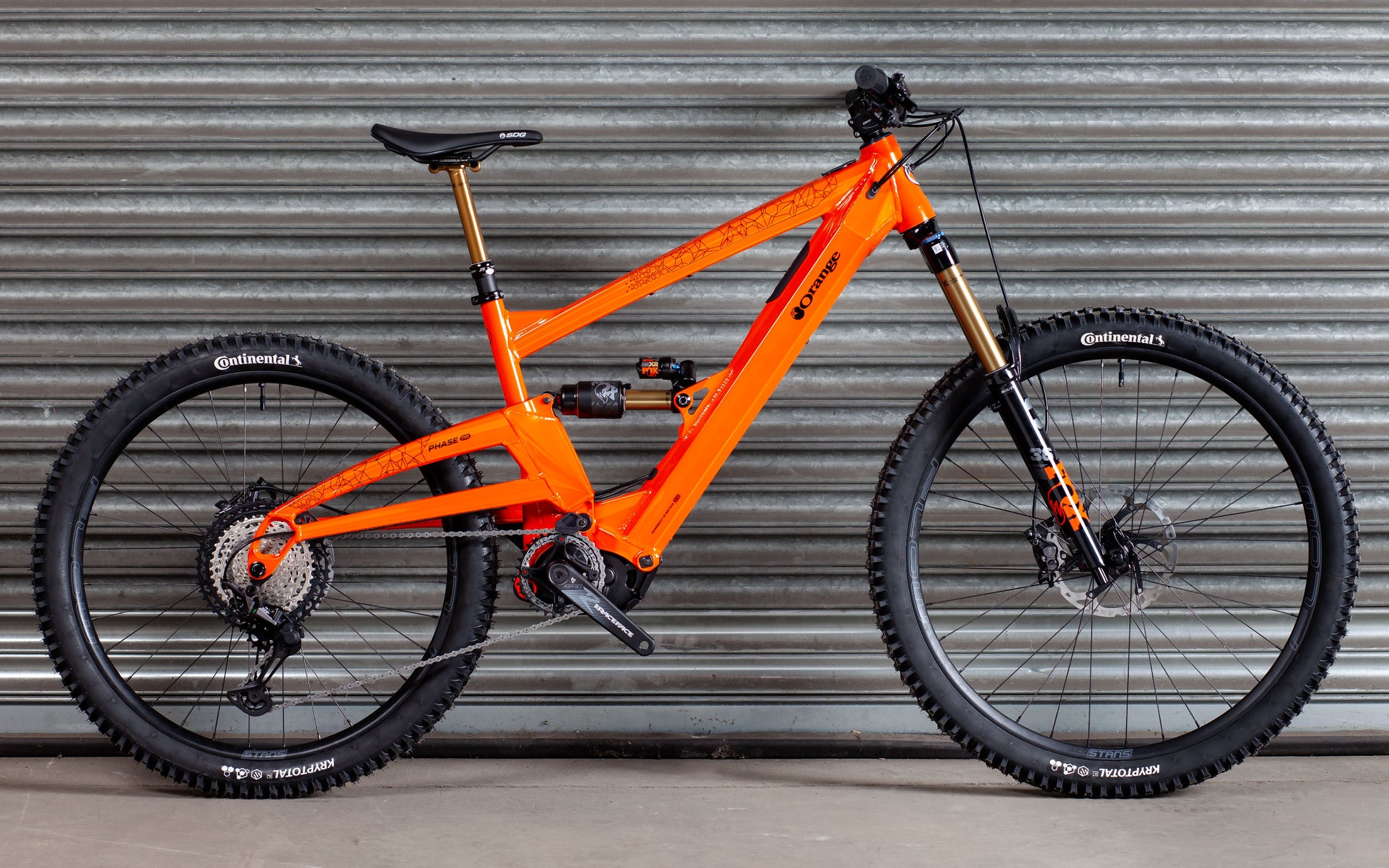

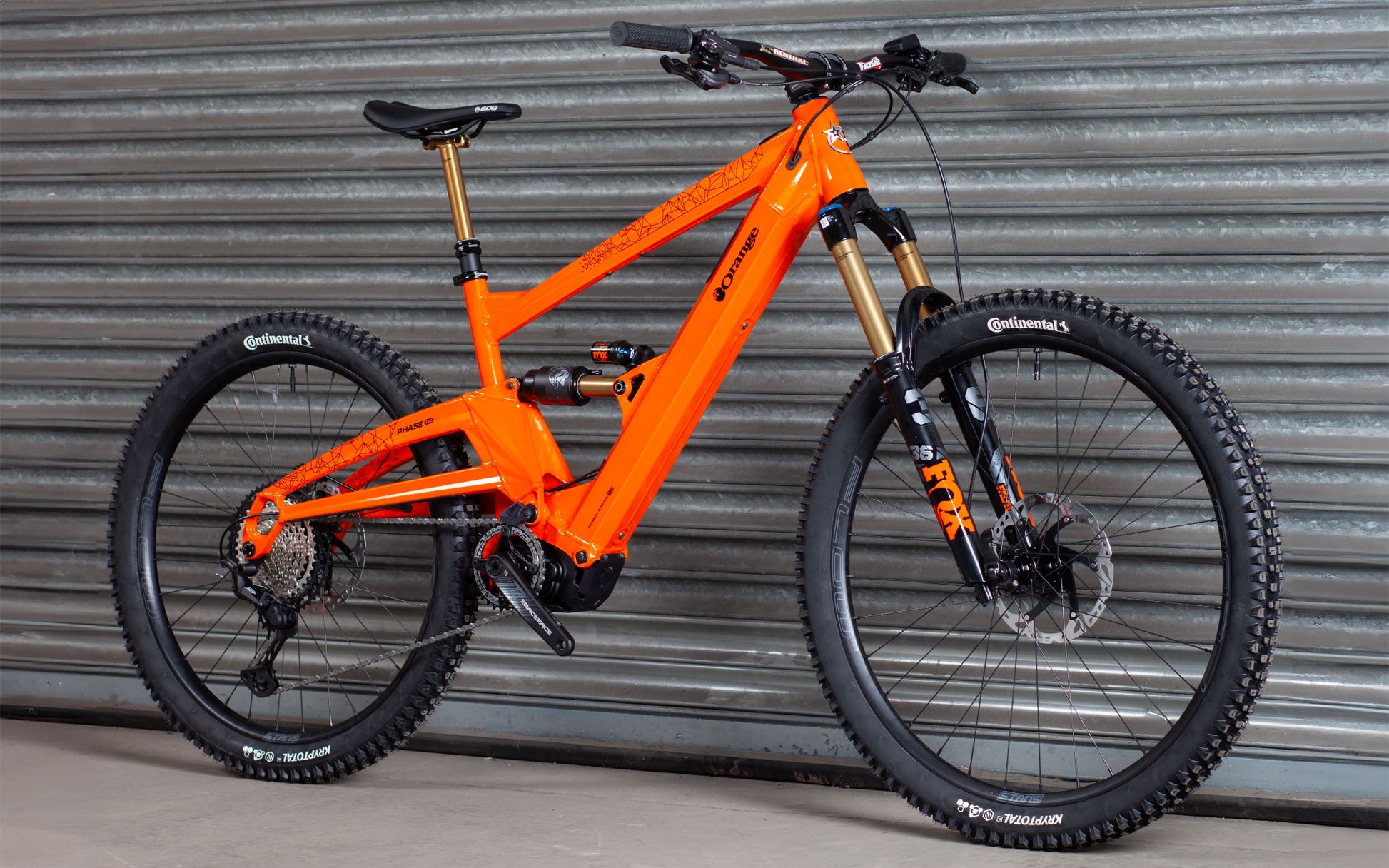

WHY THE PHASE EVO?
ELECTRIC POWERED ORANGE
F: 160MM | R: 160MM | W: 29/27.5
- Brand New Frame designed and built in Britain
- 5 year frame warranty with Limited Lifetime Crash Replacement
- Bosch Performance Line SX Drive Assist
- 29 front/27.5 rear mixed size wheelset
- Bosch CompactTube 400 integrated battery in downtube
- Easy access charging port
- New — On-board Orange SAFE – Store Accessories, Food & Equipment
- Boost 148mm rear hub spacing
- Orange trail honed geometry
- Reduced offset fork
- Long top tube short stem for high-speed stability
Bosch Performance Line SX FEATURES
- 55Nm maximum drive torque
- 4kg total weight - drive unit and battery
- Bosch CompactTube 400wh integrated battery in downtube
- eMTB Dynamic Ride Mode - with Extended Boost, for a natural ride feel and optimal control
- Smart walk assitance with hill hold
- 4 Customisable Ride Modes (Eco/Tour/eMTB/Turbo)
- eBike Flow App - Apple App/Google Play (with optional subscription to features)
- eBike Lock, Ride Screen, Navigation with flow app
- Over-the-air updates with Flow app
FRAME AND FORK
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. Rear wheel travel: 160.
Swingarm
Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Rear Shock
Fox Float X2 Factory 205x65
Headset
FPD 49mm / 56mm zerostack
Fork
Fox Factory 36 Float 160mm 29 (black)
DRIVETRAIN
Chain Device
Strange Top Guide
Bottom Bracket
Bosch Performance Line SX DU Integrated
Crankset
Race Face Aeffect R E-MTB 165mm 32t
Rear Mech
Shimano XT 12spd
Chain
SRAM NX Eagle
Shifters
Shimano XT 12spd
Cassette
Shimano XT 10-51T 12spd
WHEEL AND TYRES
Wheelset
Stans Flow Mk4 + Hope Pro 5 (Black) 29 + 27
Tyres
Continental Kryptotal F 2.4 29 / Kryptotal R 2.4 27.5
BRAKING
Brakes
Shimano XT Trail 203/203
FINISHING KIT
Seatpost
Fox Factory Transfer 150/175mm Drop
Seat Clamp
Strange Bolted
Stem
Burgtec Enduro Black 42.5mm
Saddle
SDG Strange Bel Air III
Handlebars
Burgtec RideWide Enduro 800mm
Grips
Strange Grappler Lock-On
POWER ASSIST
Control Switch
Bosch Purion 200
Drive Display
Bosch Purion 200
Battery
Bosch Compact Tube 400Wh
Drive Unit
Bosch Performance Line SX
