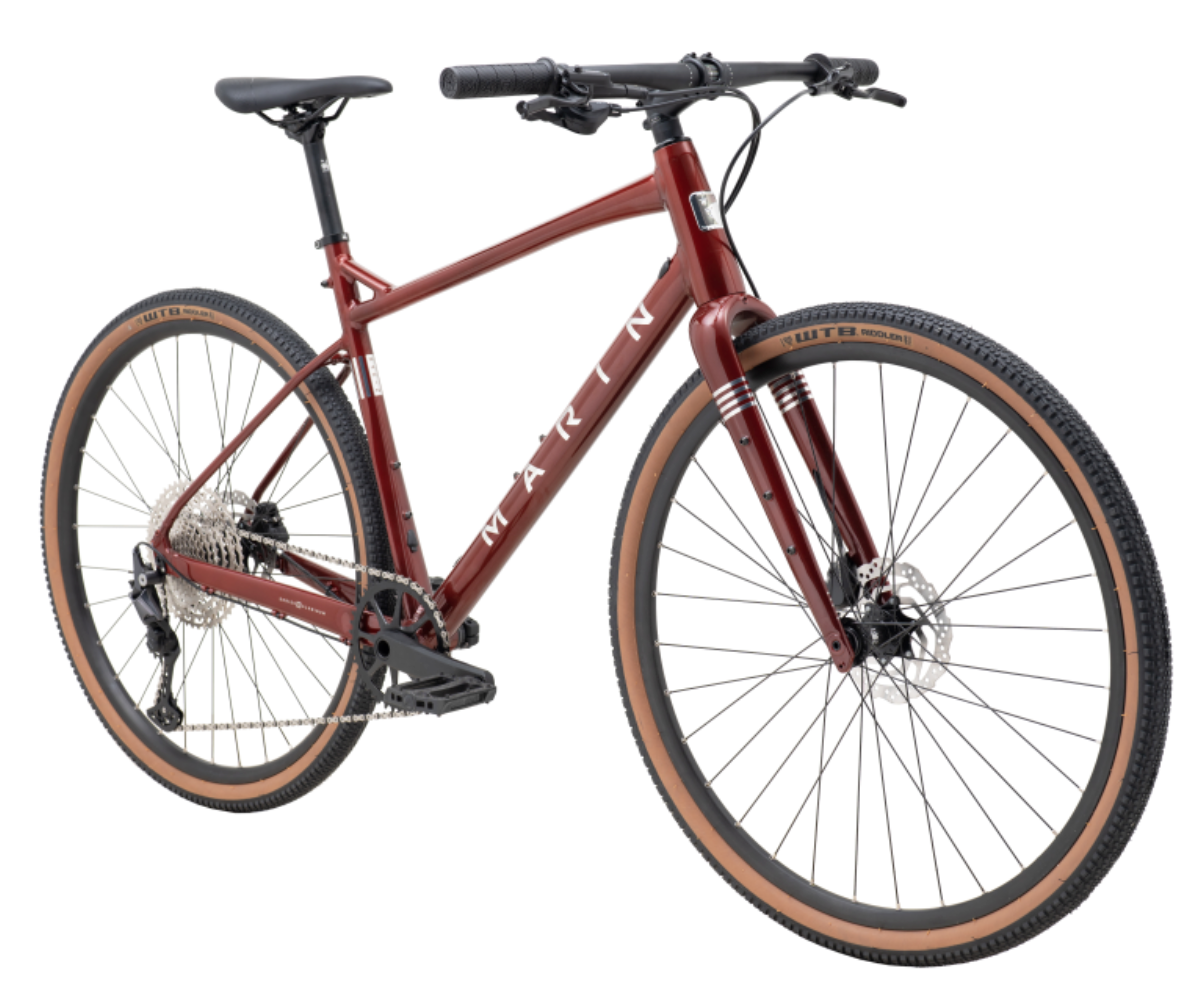

Marin DSX 2 700C RED

Free Gifts

• The Marin DSX is everything we want from a modern, flat-bar gravel bike.


  Zippy aluminum frames, carbon forks, heaps of tire clearance, low standover, dropper post compatibility and a whole load of options for bags and fenders. Based around the Gestalt X drop-bar, we made the DSX to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars.


  The Marin DSX 2 is built around a Series 3 aluminum frame and a lightweight, carbon fork that’s packed with mounting points for bikepacking gear. There’s also a 12-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.

  Key upgrades over the DSX 1:

  • Shimano Deore 6100 1x12 drivetrain
  • Tektro R285 hydraulic disc brakes

  • RAME

    Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

  • FORK

    Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

  • RIM

    Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible

  • HUB REAR

    Forged Aluminum, 142x12mm, Disc Specific, 32H

  • HUB FRONT

    Forged Aluminum, 100x12mm, Disc, 32H

  • SPOKES NIPPLES

    14g Black Stainless Steel

  • TIRES

    WTB Riddler, 700Cx45mm

  • DERAILLEUR REAR

    Shimano Deore, RDM6100, 12-Speed

  • DERAILLEUR FRONT

    -

  • SHIFT LEVER

    Shimano Deore, SLM6100, 12-Speed

  • CRANKSET

    Forged Aluminum, 42T Steel Narrow Wide Chainring

  • BOTTOM BRACKET

    Sealed Outboard Bearing

  • CHAIN

    KMC X12

  • CASSETTE

    SunRace, 12-Speed, 11-51T

  • BRAKES FRONT

    Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor

  • BRAKES REAR

    Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor

  • BRAKE LEVERS

    Tektro Hydraulic

  • HANDLEBAR

    Marin MiniRiser

  • STEM

    Marin 3D Forged Alloy

  • GRIPS

    Marin MTB

  • HEADSET

    FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

  • SEATPOST

    Marin Alloy

  • SADDLE

    Marin DSX

  • PEDALS

    Nylon Platform

  • EXTRAS

    Bolt-On Thru-Axles F and R
