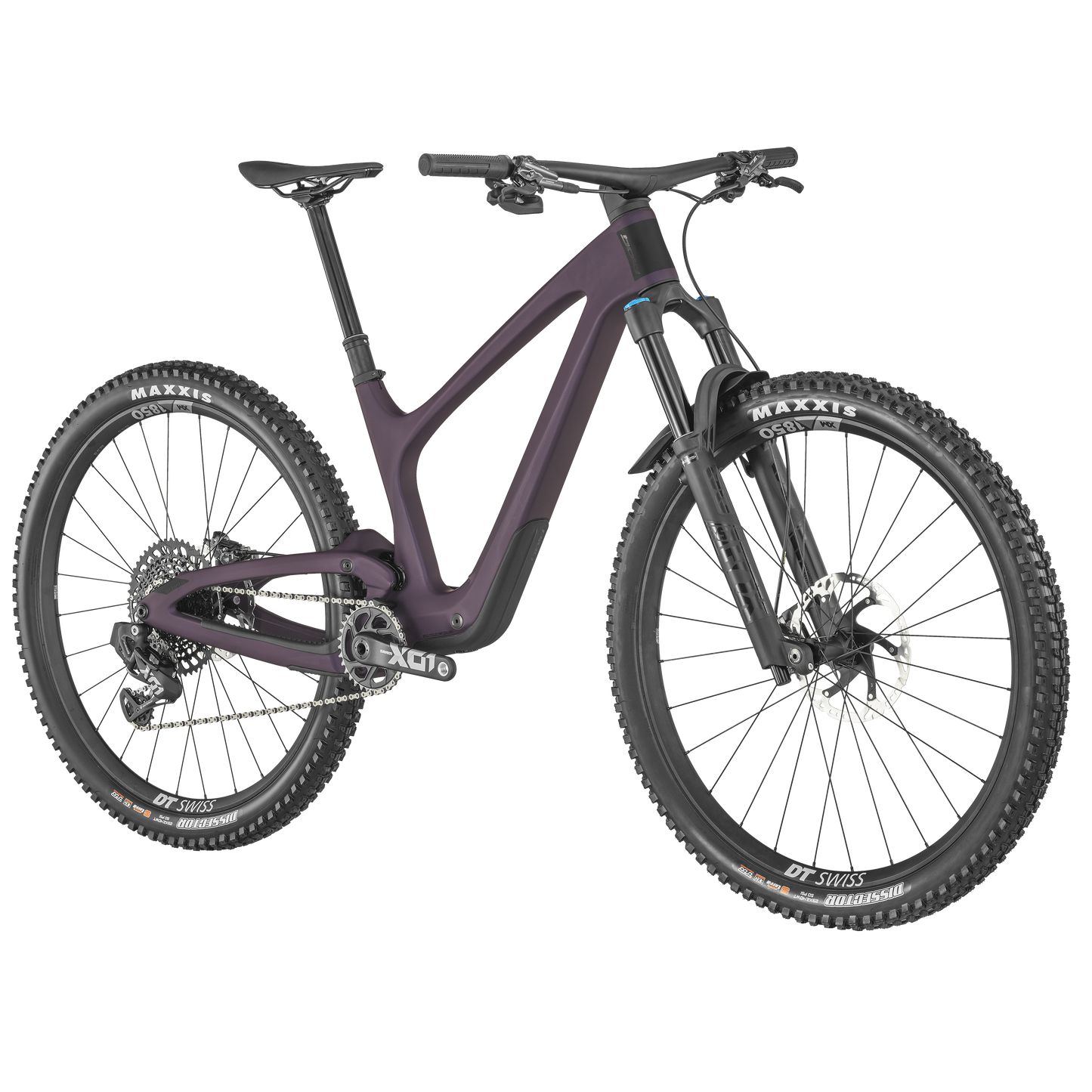

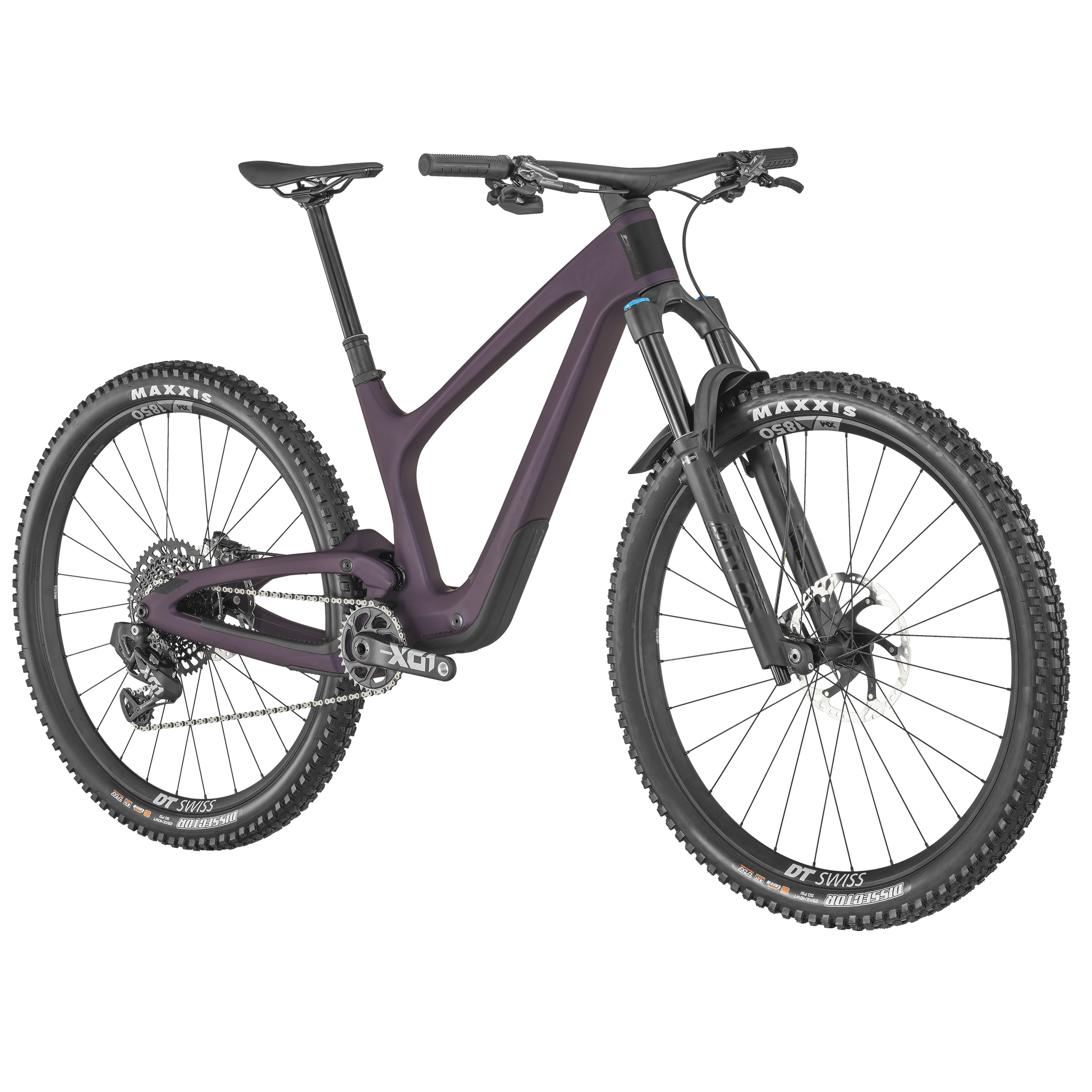

BOLD LINKIN 135 ULTIMATE BIKE
291171
The LINKIN 135 is a pure workhorse and an ideal daily driver to escape the city buzz to your local trails. A 140/135mm short-travel version of the beloved LINKIN platform, this bike carries all performance capabilities from its bigger sibling, but in an extremly efficient and agile manner. Pedaling, pumping, and jumping- the more you push the bike, the more the IST-VP suspension design will reward you. The 3-way TracLoc adjustment (Open, Traction, and Lockout Mode) comes in handy to keep your horses on the ground further aiding in making the LINKIN 135 an absolute singletrail weapon!
FrameBold Linkin 135 / Carbon HMXIntegrated Suspension Technology / IST VPVario Tech, Head angle and BB height / Syncros Cable Integration SystemBB92 / UDH Interface / 12x148mm with 55mm Chainline
ForkFOX 36 Float Performance Elite Grip 2 AirHSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle44mm offset / tapered steerer140mm travel
Rear ShockFOX NUDE 5T EVOL TrunnionCustom w. travel / geo adj.3 modes: Lockout-Traction Control-DescendCustom large Air volume / DPS / Reb. Adj.T185X55mm / Travel 135-90-Lockout
Remote SystemTracLoc TechnologyRear Suspension & Dropper Remote3 Rear Suspension modes
Rear DerailleurSRAM X01 Eagle AXS / 12 SpeedWireless Electronic Shift System
ShiftersSRAM GX Eagle AXS Rocker Controller
CranksetSRAM X01 DUB Eagle Carbon crankarm 55mm CL / 32T
BB-SetSRAM DUB PF 92 MTB Wide / shell 41x92mm
ChainSRAM CN GX Eagle
CassetteSRAM GX XG1275 / 10-52 T
BrakesShimano XT M8120 4 Piston Disc
RotorShimano SM-RT76 / 6 Bolt / 203/F and 180/R
HandlebarSyncros Hixon iC CarbonSize S & M 15mm rise / Size L & XL 25mm riseback sweep 8° / 780mmSyncros Endurance lock-on grips
SeatpostSyncros Duncan Dropper Post 1.5 34.9mmSize S 170mm / Size M, L & XL 200mm
SeatSyncros Tofino 1.5 RegularTitanium rails
HeadsetSyncros - Acros Angle adjust & Cable Routing HS SystemStainless / +-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
WheelsetDT Swiss XM 1850 Spline 6 BoltF: 15x110mm / R: 12x148mm30mm Tubeless ready rim 28H / XD DriverSyncros Axle w/Removable Lever with Tool
Front TireMaxxis Dissector / 2.4" / 60TPI FoldableTubeless Ready / EXO
Rear TireMaxxis Dissector / 2.4" / 60TPI FoldableTubeless Ready / EXO
ExtrasSave the Day KitSRAM AXS PowerpackSyncros Fork Fender
AccessoriesSyncros Eco Sealant
Approx weight in KG13.9kg / 14.3kg
